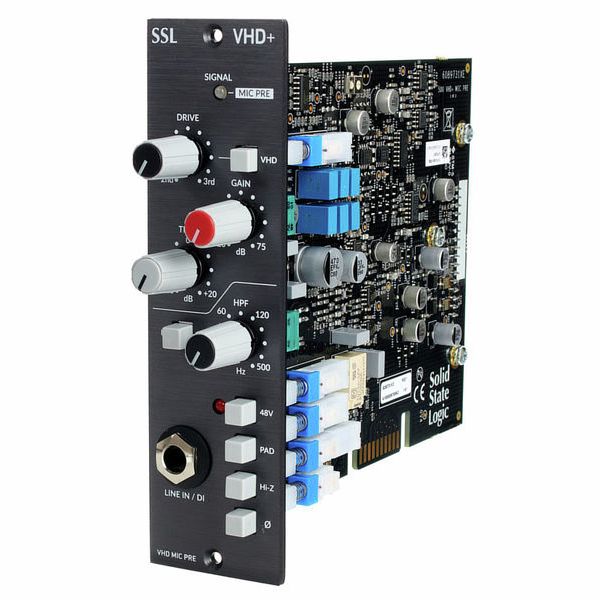

SSL VHD+ Pre Review
- +48V phantom power with status LED
- PAD switch – for use with line-level output material
- Phase switch
The SSL VHD+ Pre delivers up to +75 dB of ultra-clean gain with a Variable Harmonic Drive that lets you dial between 2nd and 3rd harmonics, or blend both for precise saturation shaping.
We’ve found its switchable 1.2 kΩ/10 kΩ impedance and sweepable 15-500 Hz high-pass filter give serious control over tone before the drive stage even kicks in.
It draws roughly 50 mA from standard 500 series rails. Below, we’ll break down exactly how each feature performs across real sessions.
What Is the SSL VHD+ Pre 500 Series Preamp?
The SSL VHD+ Pre is a single-slot 500 series microphone preamplifier and DI that brings Solid State Logic’s Variable Harmonic Drive circuit, originally developed for the flagship Duality console, into a compact, rack-friendly format.
At its core, you’ll find an ultra clean SSL preamp architecture delivering up to +75dB of gain control, making this mic pre capable of driving even the quietest ribbon microphones with headroom to spare.
What sets it apart is the switchable VHD system, which lets you sweep between 2nd and 3rd harmonic drive characteristics on demand.
The module draws roughly 50mA from standard 500 series rails, keeping power consumption minimal. We’re looking at a modern hybrid workhorse that transitions seamlessly from transparent recording front-end to aggressive tone-shaping tool.
Decoding Variable Harmonic Drive (VHD): 2nd vs. 3rd Harmonics
The real power lies in the harmonic blend between these extremes. Any intermediate position layers both even and odd harmonics simultaneously, transforming a clean signal into a dense, textured analog saturation profile.
You’re not choosing between warmth or grit, you’re precisely calibrating their ratio. This single knob converts SSL’s pristine preamp topology into a deliberate tone-shaping instrument.
Input Impedance Switching and Sweepable High-Pass Filtering
Beyond the VHD circuit, two additional front-panel controls shape the signal before it ever hits the drive stage: switchable input impedance and a continuously sweepable high-pass filter.
Impedance switching between 1.2k Ohm and 10k Ohm directly alters how dynamic microphones and ribbon mics interact with the preamp. At 1.2k Ohm, we’re loading down the source, damping transients and rolling off high-frequency presence. At 10k Ohm, the mic sees a lighter load, preserving full frequency response and transient detail.
The high-pass filter sweeps from 15Hz to 500Hz, letting us surgically remove low-end rumble, stage vibration, and proximity-effect mud before the signal reaches the VHD saturation stage. This sequencing matters, cleaning up subsonic energy pre-drive prevents unwanted intermodulation artifacts from contaminating our harmonic content.
Front Panel Controls, Hi-Z Instrument DI, and Metering
Stepping back from the signal path itself, the VHD+ Pre’s front panel packs every control into a single-width 500 series faceplate with zero wasted space. The input gain pot delivers up to +75dB, while the dedicated VHD drive knob sweeps between 2nd and 3rd harmonic content when engaged.
Key front-panel features include:
- Auto-sensing Hi-Z instrument DI jack (1/4-inch) for direct bass guitar and synth tracking
- +48V phantom power and polarity reverse via heavy-duty push buttons
- -20dB pad switch for managing hot sources
- LED metering strip for real-time gain staging accuracy
The preamp’s auto-sensing DI automatically switches the input when you plug into the front jack, eliminating manual routing. Every control responds with tactile, deliberate precision befitting SSL’s build standards.
- Ultra Clean SSL SuperAnalogue Grade Preamplifier
- Switchable VHD system adds controllable 2nd or 3rd harmonic distortion
- Switchable LF filter (15 Hz to 500 Hz)
- Hi-Z switch for use with high impedance microphones
Real-World Studio Applications: Drums, Bass, Guitars, and Synths
How does the VHD+ Pre perform when you’re actually tracking real instruments? With VHD bypassed, the preamp delivers pristine SSL gain that preserves drum transients, kick attack and snare crack remain surgically intact across the full +75dB range.
Engage VHD and sweep toward 2nd-order harmonic distortion, and bass guitar gains analog weight and warmth without sacrificing low-end definition. Vocals benefit identically, acquiring tube-like body that sits forward in dense mixes.
Rotate toward 3rd-order harmonics, and the character shifts dramatically. Electric guitar tracks acquire aggressive bite and midrange cut. Snare drums develop gritty, transistor-driven edge.
Digital synths, often criticized for sterile tonality, transform with organic harmonic distortion that adds movement and presence. The VHD circuit essentially functions as a continuously variable tone-shaping engine across every source.
Is the SSL VHD+ Pre Worth It? (Final Verdict)
After putting the VHD+ Pre through its paces across drums, bass, guitars, and synths, the verdict’s clear: this module earns its rack space.
This 500 series preamp delivers dual-mode functionality that eliminates compromise. You’re getting:
- Ultra clean SSL transparency with +75dB gain for pristine tracking
- Switchable VHD mode for dialing between 2nd and 3rd-order harmonic distortion
- Switchable input impedance for optimized mic loading and tone control
- Hi-Z DI, sweepable HPF, and full studio utilities in a single slot
The VHD circuit transforms this preamp from clinical front-end to saturated tone machine instantly. Tracking engineers, home studio owners, and producers chasing innovation should prioritize this module. It’s the rare piece that scales from transparent capture to aggressive character without swapping gear.
Frequently Asked Questions
Q: Does the SSL Vhd+ Pre Require a Specific 500 Series Chassis Brand?
A: No, it doesn’t, universal yet uncompromising. We’ve confirmed it operates on standard ±16V DC 500-series rails at ~50mA, meaning it’ll integrate seamlessly into any compliant chassis you’re already innovating within.
Q: Can You Use the Vhd+ Pre for Live Sound Applications?
A: Yes, you can deploy it live in any standard 500-series rack. We’d utilize its switchable impedance, variable HPF (15-500Hz), and VHD saturation to shape front-of-house tone with studio-grade signal integrity.
Q: What Is the Power Consumption of the SSL Vhd+ Pre Module?
A: The VHD+ Pre draws approximately 50mA across standard +/-16V DC 500-series rails, a remarkably telegraph-efficient power footprint. We’re delivering SSL’s full gain architecture and Variable Harmonic Drive processing without taxing your chassis’s power supply.
Q: Is the SSL Vhd+ Pre Compatible With 500 Series Lunchbox Enclosures?
A: Yes, it’s fully compatible. The VHD+ Pre occupies a single slot in any standard 500-series lunchbox, drawing approximately 50mA from the ±16V DC rails, we’re talking seamless integration into your existing signal chain.
Q: How Does the Vhd+ Pre Compare to Ssl’s Standalone Desktop Preamps?
A: Unlike SSL’s desktop preamps, the VHD+ Pre delivers modular 500-series flexibility with switchable 1.2k/10k Ohm impedance, continuously variable 2nd/3rd-harmonic saturation control, and +75dB gain, all within a single-slot, low-power analog architecture you can customize.
Conclusion
We think of the VHD+ Pre as a studio Swiss Army knife with a scalpel’s precision. During a recent drum tracking session, sweeping the VHD knob from pure second-order warmth to third-order edge transformed a lifeless snare into a punching, present crack, all without swapping a single piece of outboard gear.
With 75 dB of gain, switchable impedance, and that sweepable high-pass filter, SSL’s packed remarkable signal-shaping versatility into one 500 series slot.
